ASME SB862

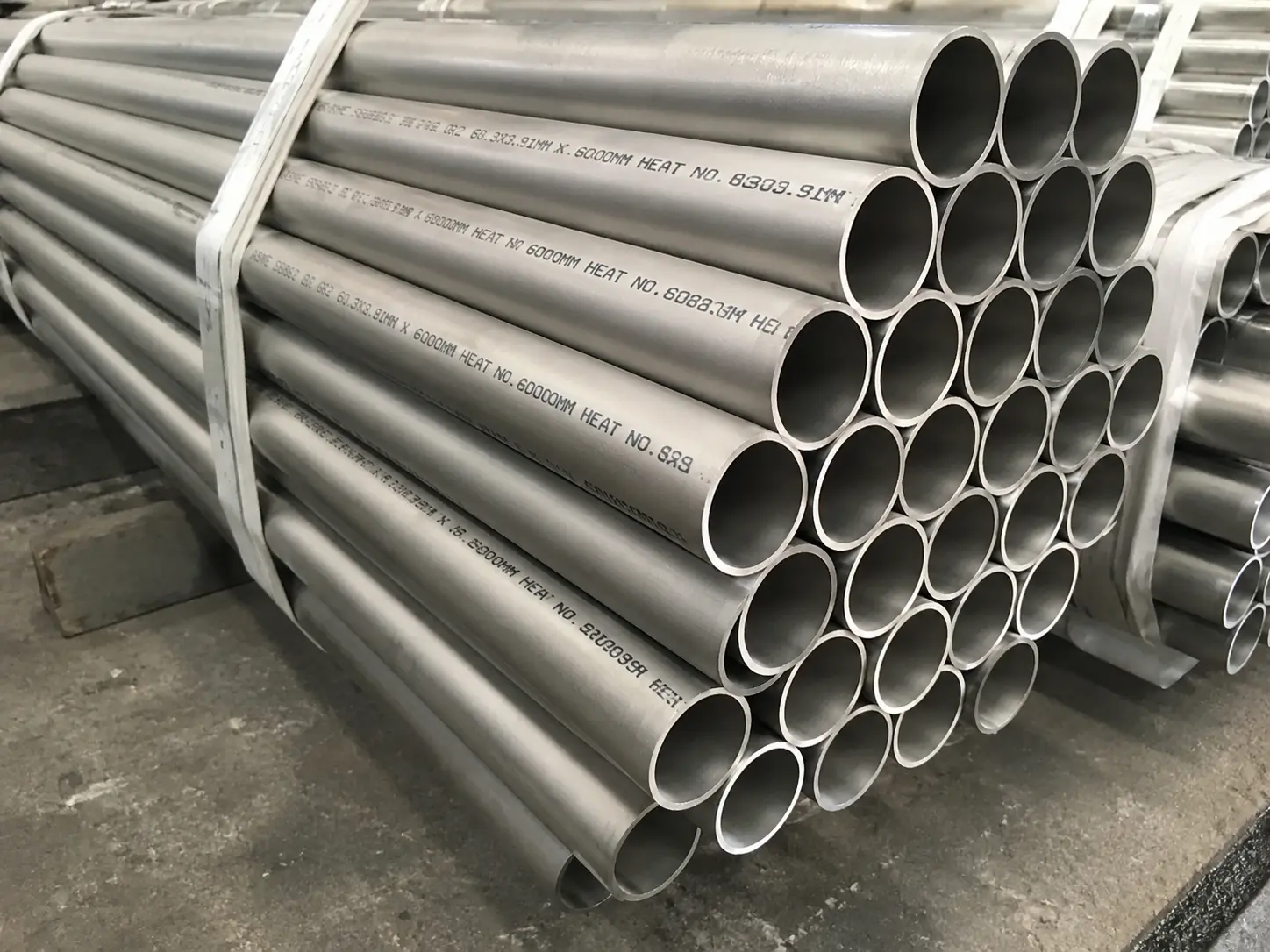

ASME SB862 Titanium Welded Pipes
ASME SB862 is the standard specification for titanium and titanium alloy welded pipes intended for general corrosion resistance and elevated temperature service. Covering 33 titanium and alloy grades, SB862 pipes are widely used in heat exchangers, condensers, chemical process systems, power generation, and marine environments where reliability and longevity are critical.
What Is ASME SB862?
ASME SB862 is the ASME-adopted version of ASTM B862, making it fully compliant with the ASME Boiler & Pressure Vessel Code.
It specifies requirements for titanium welded pipes including material grades, chemical composition, and dimensional tolerances.
Manufacturing methods: Welded from annealed flat-rolled titanium.
Heat treatment and finishing options covered within the standard.
Mechanical properties & testing: Tensile, yield, elongation, hydrostatic, and NDT.
Marking & certification: MTC EN 10204 3.1/3.2 available with full traceability.
Searching for a trusted ASME SB 862 supplier? We provide titanium welded pipes ready for critical industrial applications.
Key Advantages of ASME SB862 Titanium Pipes
Outstanding corrosion resistance in seawater, brine, and aggressive chemical media.
High strength-to-weight ratio — ideal for reducing system weight without compromising safety.
Excellent heat performance up to 400–450°C in condensers and heat exchangers.
Reliable weld integrity: GTAW/TIG welded and may be cold-worked for microstructure refinement.
Lower lifecycle cost through longer service life and minimal maintenance.
Grades Covered Under ASME SB862
| Category | Grades | Typical Use / Notes |
|---|---|---|
| Commercially Pure Titanium | Grade 1, Grade 2, Grade 2H, Grade 3 | Excellent corrosion resistance for general industrial & marine service |
| Palladium-Enhanced | Grade 7, 7H, 11, 16, 16H, 17, 26, 26H | Best resistance in reducing acids, chloride brines, and harsh chemical media |
| Alpha-Beta Alloys | Grade 5 (Ti-6Al-4V), 23 (ELI), 24, 25, 29, 35 | High-strength structural & aerospace grade alloys |
| Other Specialty Alloys | Grade 9, 12, 13, 14, 15, 18, 19, 20, 21, 28, 33, 34, 37, 38, 39 | Selected for strength, weldability, or elevated-temperature corrosion resistance |
Grades are selected based on service environment — seawater, acids, or high-strength industrial needs.
Dimensional Capabilities
Sizes: ½″ to 48″ OD (custom up to 1219 mm)
Wall Thickness: SCH 5 to SCH 160 (0.5–20 mm typical)
Length: Single Random, Double Random, or custom cut-to-length
End Finish: Plain End (PE), Beveled End (BE), or special machined ends
Surface Finish: Pickled, polished, bright annealed, or custom-coated
Manufacturing & Testing Standards
Manufacturing: Welded from annealed flat-rolled titanium using GTAW/TIG process.
Heat Treatment: Annealed, stress-relieved, or solution treated (grade dependent).
Non-Destructive Testing (NDT): Eddy current, ultrasonic, or radiography.
Hydrostatic/Pneumatic Testing: Available on request.
Mechanical Testing: Tensile, yield, elongation, flattening & flare tests.
Documentation: Full traceability with MTC EN 10204 3.1/3.2; third-party inspections (SGS, TUV, DNV, Lloyd’s) available.
Applications of ASME SB862 Titanium Pipes
Power Generation: Condensers, seawater cooling circuits
Marine & Offshore: Desalination plants, brine heaters, chemical scrubbers
Chemical Processing: Chlorination, flue gas scrubbers, reaction vessels, pickling systems
Pharmaceutical & Food: Corrosion-free and hygienic transfer lines
Oil & Gas: Offshore platform piping, utility exchangers, sour gas services
Ordering Information
When requesting a quote, specify:
Required Grade (e.g., Gr.2, Gr.5, Gr.7, Gr.12)
Dimensions (OD × Wall × Length)
Delivery condition (Annealed / Stress-relieved / Solution treated)
Testing requirements (NDT, hydrostatic, PMI)
Surface finish & end configuration
Certification needed (MTC, TPI, NACE MR0103/MR0175)
Why Choose Us for ASME SB862 Pipes
Complete range of grades & sizes in stock
Global supply chain with fast delivery
Engineering guidance for grade selection & corrosion environment suitability
Third-party inspection & full traceability
Competitive pricing backed by mill-direct sourcing
